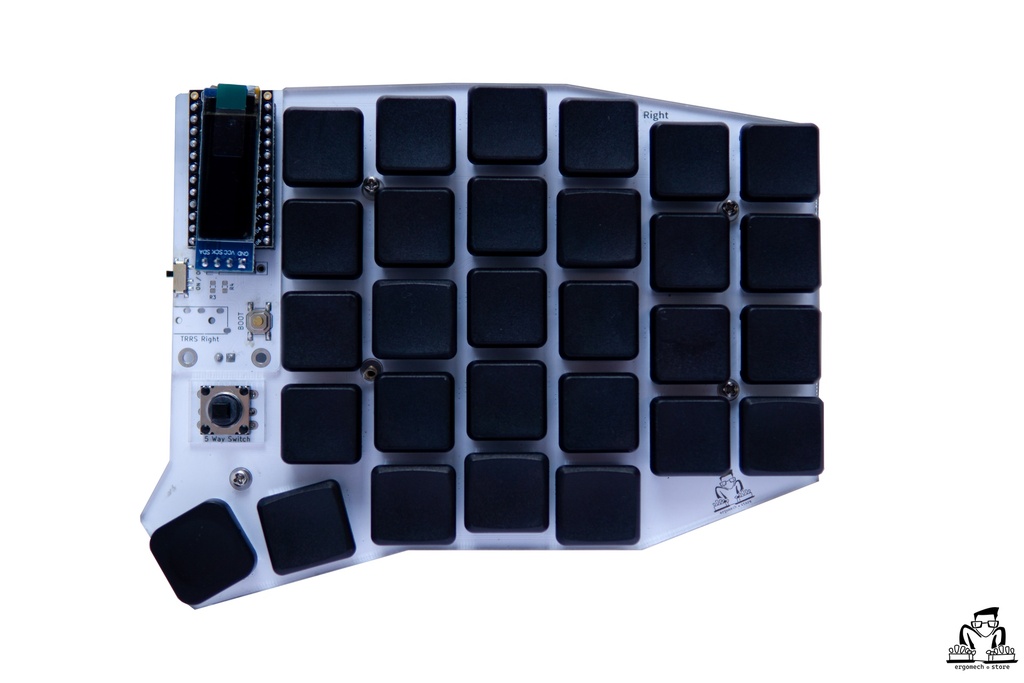

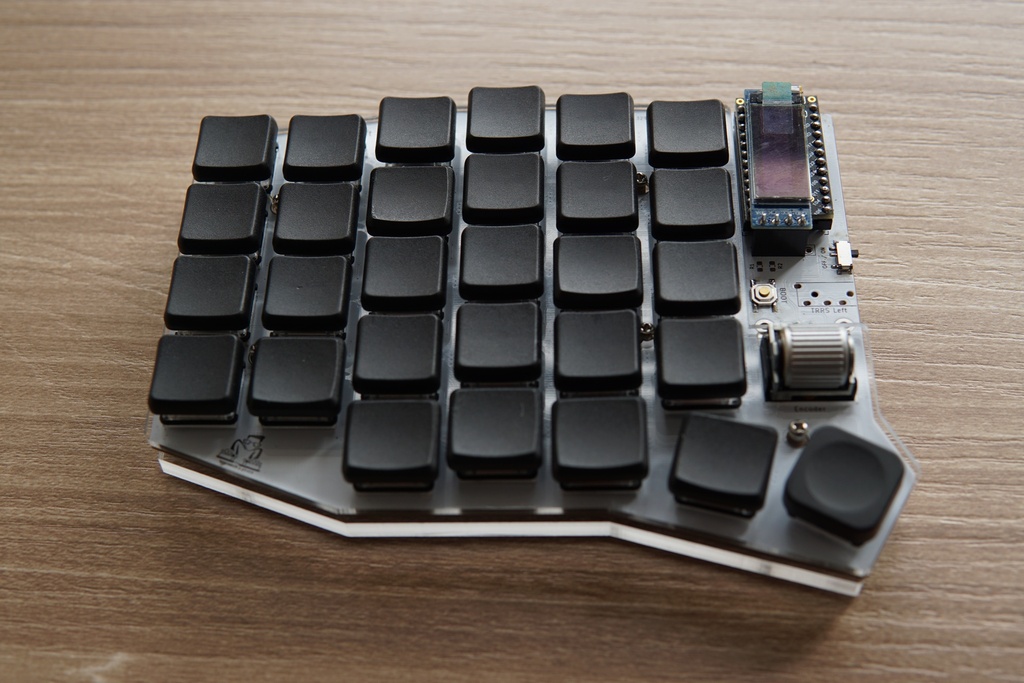

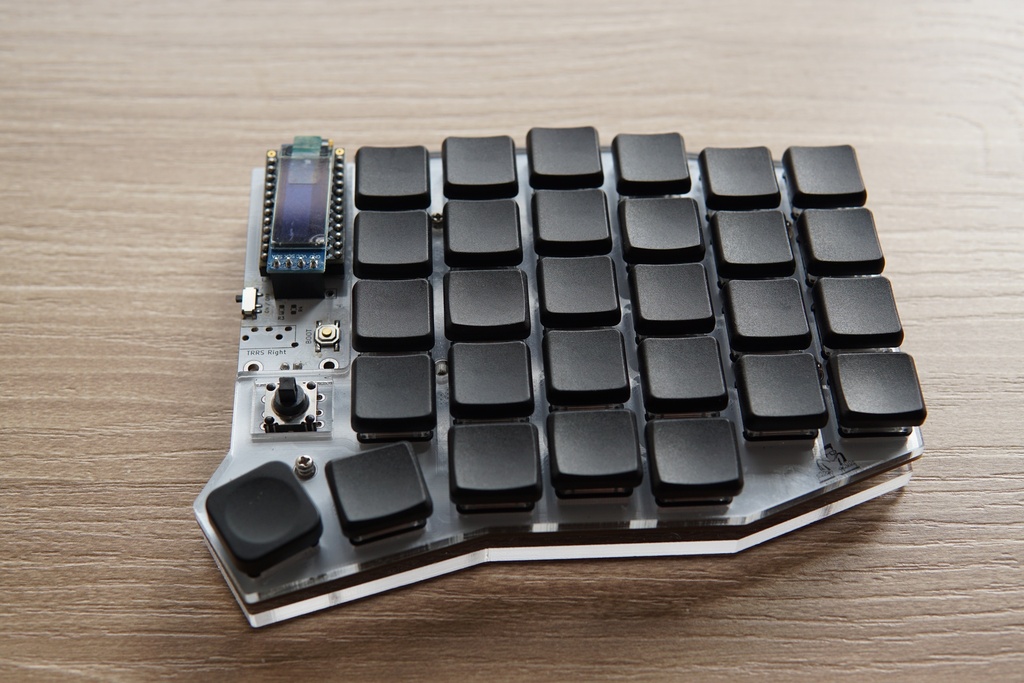

The Sofle Hybrid is the redesigned of the gread Sofle by Josefadamcik. This used to be called Sofle Choc - Ergomech revision, but this causes some confusion since there are a few Sofle Choc version out there. This is an exclusive product of our store.
The Sofle Hybrid is called so because of the versatility of the PCB. It can fit both the Cherry MX swiches as well as Kailh low profile switches. It also accommodate both wired and wireless builds without any problem.

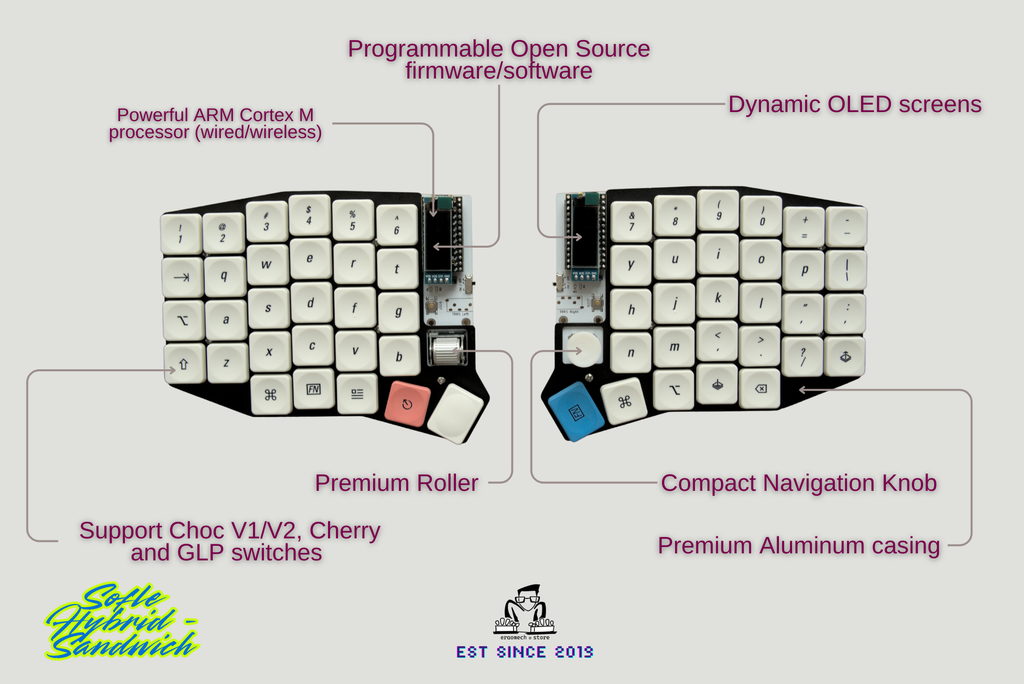

What are the features?
- Roller encoder on the left side and 5 ways switch on the right side, bring more dimension to your keyboard usage
- The PCB supports wireless controller natively (there is battery connector, Nice!view connector, on/off switches
- One 3d printed knob for the 5 way switches
- 2 Bottom and Top plates in the material of your choosing for sandwich style case
- Sandwich style case is also available with acrylic bottom plates and top plate material of your choosing (Acrylic, Stainless steel, Brass)
- RP2040 controllers with plenty of Memory for your QMK features need
- Hotswap sockets that can fit Kailh Choc switches (both v1 and v2) or Cherry MX style switches
- OLED display for more fun features
- QMK + VIAL/VIAL (for wired version) or ZMK (for wireless version) pre-flashed
Notice: If you get this keyboard with the wireless build options, we will include 2 wireless controllers, batteries, power switches to the build.
This kit does not include switches or keycaps. You'll need to get them separately. If you need a keycap set, we can recommend the MBK Legend Glow R2
The wireless version of this board uses ZMK firmware and the default configuration can be found here
Please note that this is a prebuilt option, meaning we solder everything and you only need to plug in the switches and keycaps. We used to have kits for sale but due to the lack of documentation, we have to pull it off the shelf until we can provide a details build guide.
Please read this post to understand how we ship our items: https://ergomech.store/blog/ergomech-blog-1/how-our-shipping-works-4
Please read this post to help you choose the correct options: https://ergomech.store/configuration-guide
Please read this post for the default configuration of the keyboard: https://ergomech.store/blog/ergomech-blog-1/products-documentations-7
Specifications
| Plate material | Acrylic or Aluminum or Brass |
| Tenting | Non Tenting or Tenting |
| Build option | Kit only (Unsoldered components) or Fully Built (We soldered it for you) |
| Socket type | Cherry or Choc (low profile) or Gateron Low Profile |
| Wireless build | No - Wired build or Yes - Wireless build |
| Case style | Sandwich Style |
