Visit the Configuration Guide for any help
Core Features
Premium
Anodized Aluminum casing and switch plates
Hardware compatibility
Fit Choc v1, Choc v2 switches (Socket: Choc) or Cherry MX switches (Socket: Cherry)
Wireless version can be used with Nice!View style display
Firmware
Wired keyboard: QMK with VIAL compatibility
Wireless keyboard: ZMK with ZMK studio compatibility
Repairability
Durable but easy to repair, almost all component can be pull out without extra tools.
Package included
Aluminum Case
Turn every feature into a benefit for your reader.
Pre-assembled, well tested PCB
With display, sockets, diodes and everything else included
Battery included
Yes, if a wireless board needs battery, it's included
Some bell and whistle
TRRS cables for wired boards, Rubber feets, quality of life stuffs.
Not Included Switches and keycaps
These are highly personal items, so it's not included by default
The Sofle Hybrid is the redesigned of the gread Sofle by Josefadamcik. This used to be called Sofle Choc - Ergomech revision, but this causes some confusion since there are a few Sofle Choc version out there. This is an exclusive product of our store.
The Sofle Hybrid is called so because of the versatility of the PCB. It can fit both the Cherry MX swiches as well as Kailh low profile switches. It also accommodate both wired and wireless builds without any problem.

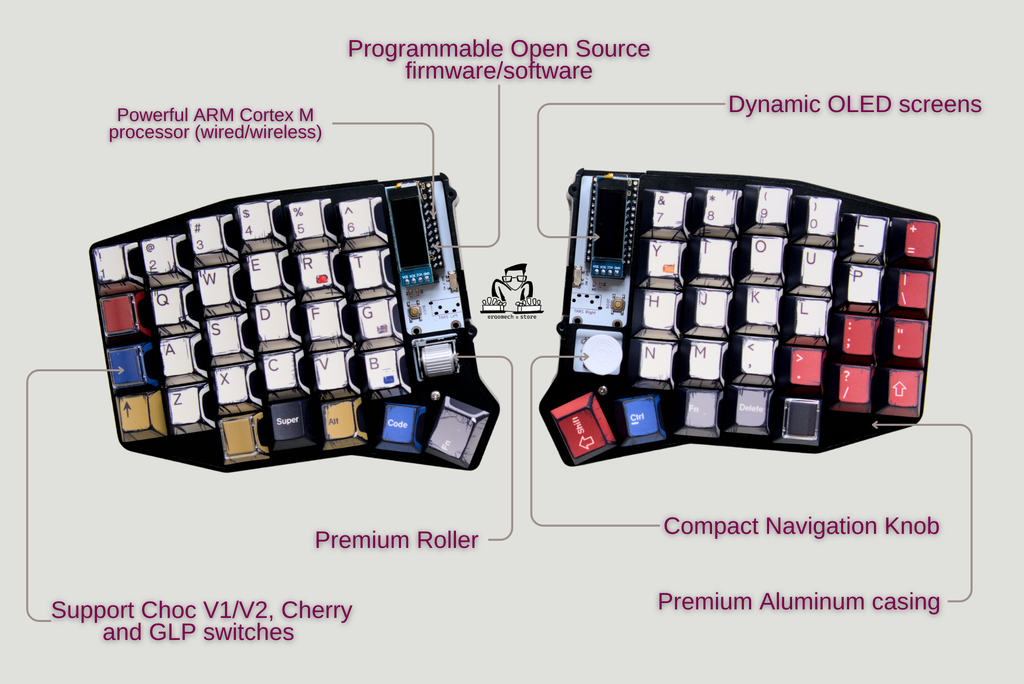

What are the features?
- Roller encoder on the left side and 5 ways switch on the right side, bring more dimension to your keyboard usage
- RP2040 controllers with plenty of Memory for your QMK features need (or nrf52840 for wireless build)
- Hotswap sockets that can fit Kailh Choc switches (both v1 and v2)
- OLED display for more fun features
- QMK + VIAL preflashed (ZMK for wireless build)
- Super slim (12mm from bottom of the case to the top of the case) (17mm in total height including switches and keycaps)
- The PCB supports wireless controller natively (there is battery connector, Nice!view connector, on/off switches)
- The case has battery cutout that can hold batteries up to 1000mAh
- Aluminum case in black or silver that will fit any setup
Notice: If you get this keyboard with the wireless build options, we will include 2 wireless controllers, batteries, power switches to the build.
This kit does not include switches or keycaps. You'll need to get them separately.
The wireless version of this board uses ZMK firmware and the default configuration can be found here
Please note that if you choose the fully built option, we will solder everything and you only need to plug in the switches and keycaps.
Please note that this is a Build-to-order product, we cannot provide refund/cancellation once the production is put into motion. You can request cancellation within 1 day of order, after that, we cannot provide any refund or cancellation.
Please read this post to understand how we ship our items: https://ergomech.store/blog/ergomech-blog-1/how-our-shipping-works-4
Please read this post to help you choose the correct options: https://ergomech.store/configuration-guide
Please read this post for the default configuration of the keyboard: https://ergomech.store/blog/ergomech-blog-1/products-documentations-7
Specifications
| Plate material | Acrylic or Aluminum or Brass |
| Color | Black or Silver |
| Socket type | Cherry or Choc (low profile) |
| Wireless build | No - Wired build or Yes - Wireless build |
| Encoder and 5 way switches | Roller encoder and 5 way switches or Switches only |
| RGB | No RGB or RGB |
| Case material | Aluminum |
| Build option | Fully Built (We soldered it for you) |
