Visit the Configuration Guide for any help

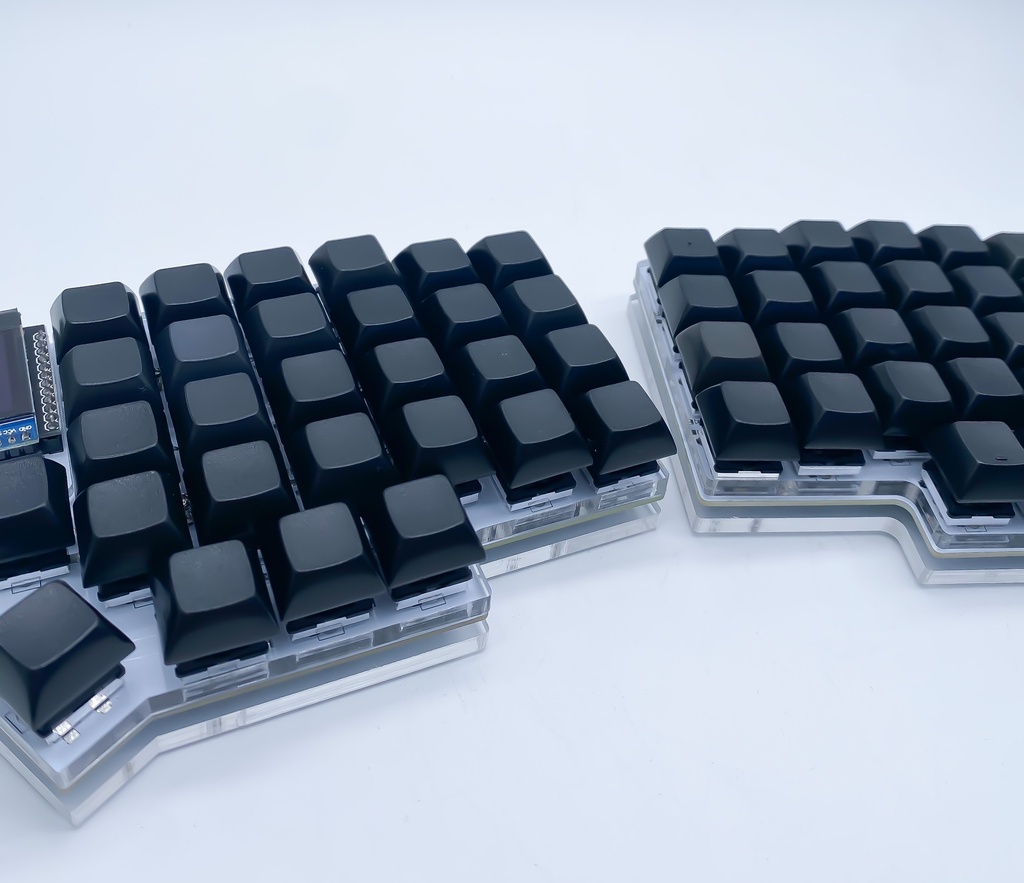

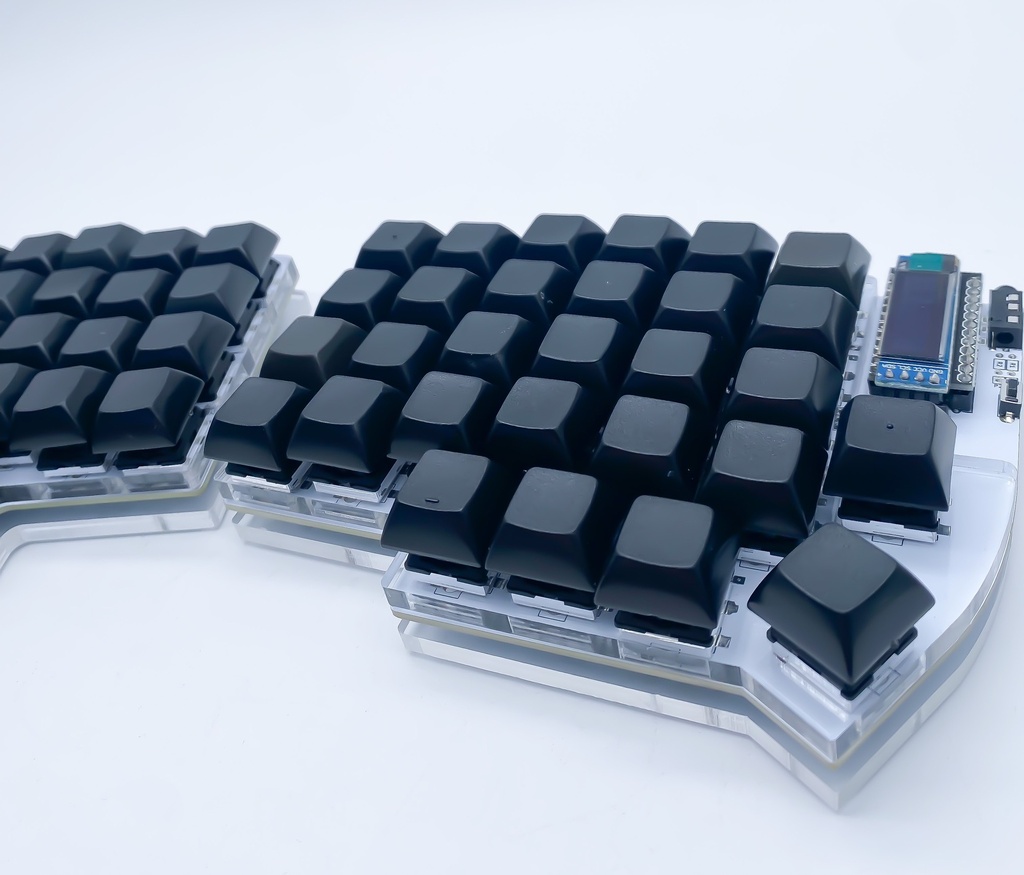

Lily58 – Sandwich style

http://ergomech.store/web/image/product.template/10/image_1920?unique=83a963a

85.00 85.0 USD 100.00

100.00

Not Available For Sale

  • Case style
  • Plate material
  • Tenting
  • Build option
  • Socket type
  • Wireless build

This combination does not exist.

This is a Lily58 split ergonomic keyboard kit without switches and keycaps:

Features:

- Powered by the powerful RP2040 MCU, allowing users to use more macros and features from QMK

- Columnar staggered layout, allowing comfortable movements of the fingers

- Tenting capability, allowing users to set the keyboard at an incline to fit with natural position of their hands

- Hotswap sockets that can fit any cherry MX style switches

- RP2040 MCU (Wired build) or Nice!Nano Compatible controllers (Wireless build)

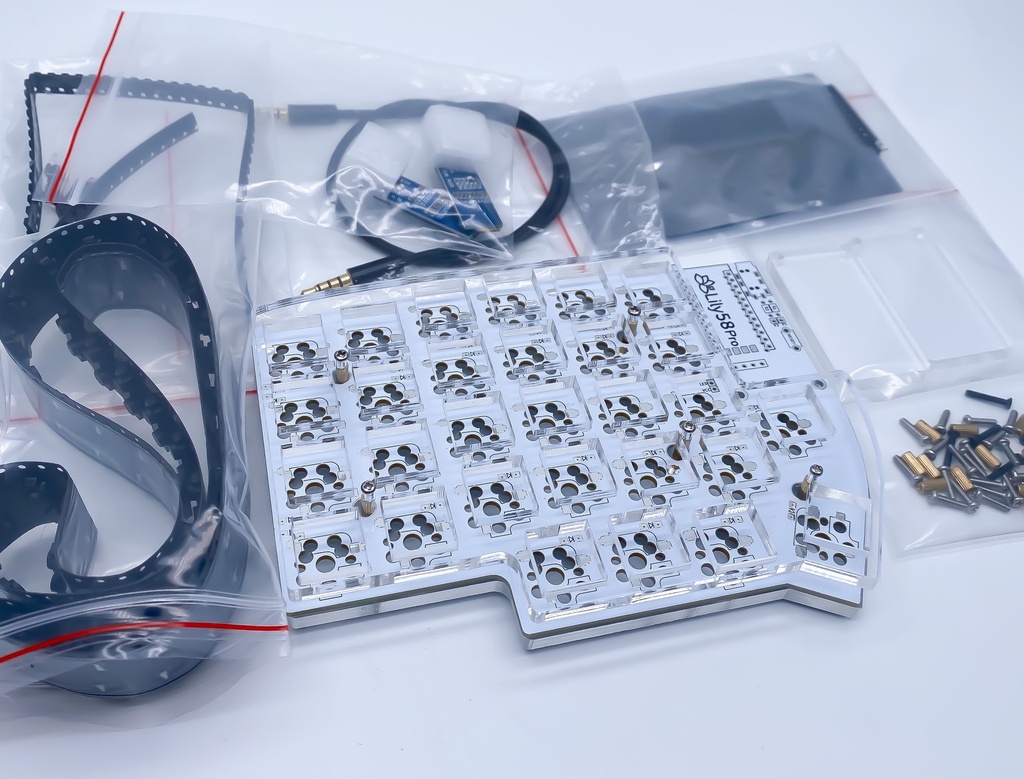

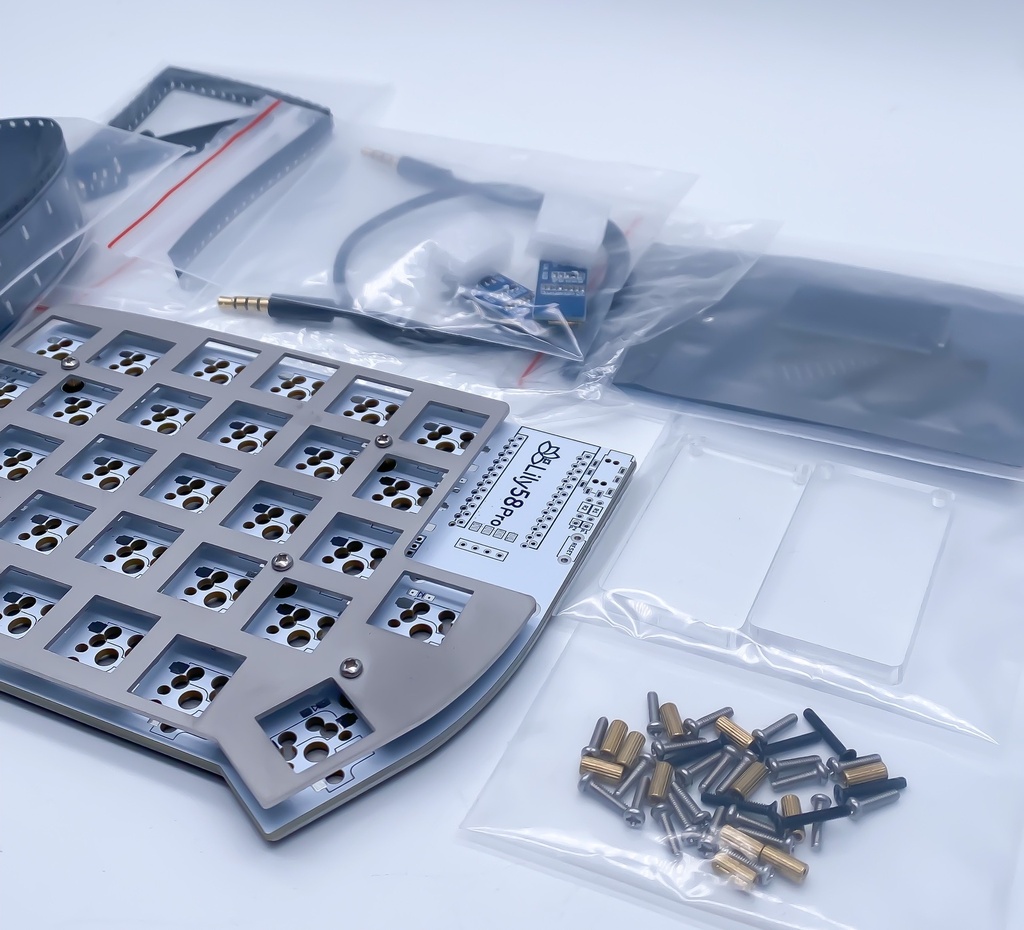

What's in the order:

- PCB with all the component pre-soldered and tested (if you choose the fully built options) - or a kit of components if you choose the Kit only

- 2 Switches plates (Material of your choosing) and 2 bottom plates (only available in Acrylic)

- 1 TRRS cable


Component kit contents:

- 10 brass standoff

- Screws and nuts to install the brass standoff

- 2 x PCBs

- 2 x TRRS Jacks

- 2 x Reset buttons

- 2 x OLED covers

- 2 x Promicro controllers

- 58 x Hotswap sockets (and some spares)

- 58 x Diodes


Please read this post carefully to understand how we ship our items: https://ergomech.store/blog/ergomech-blog-1/how-our-shipping-works-4

Please read this post to help you choose the correct options: https://ergomech.store/configuration-guide

Please read this post for the default configuration of the keyboard: https://ergomech.store/blog/ergomech-blog-1/products-documentations-7

Specifications

Plate material Acrylic or Aluminum
Tenting Non Tenting or Tenting
Build option Kit only (Unsoldered components) or Fully Built (We soldered it for you)
Socket type Cherry or Choc (low profile)
Wireless build No - Wired build or Yes - Wireless build
Case style Sandwich Style
