Visit the Configuration Guide for any help
Technical Features:
Resolution: 160 x 68 (1.08")
Dimensions: 36 x 14 x 2.9mm
Refresh Rate: 30Hz
Typical Power Draw:~10μA
Protocol: 3-wire SPI
Voltage: 3.3V

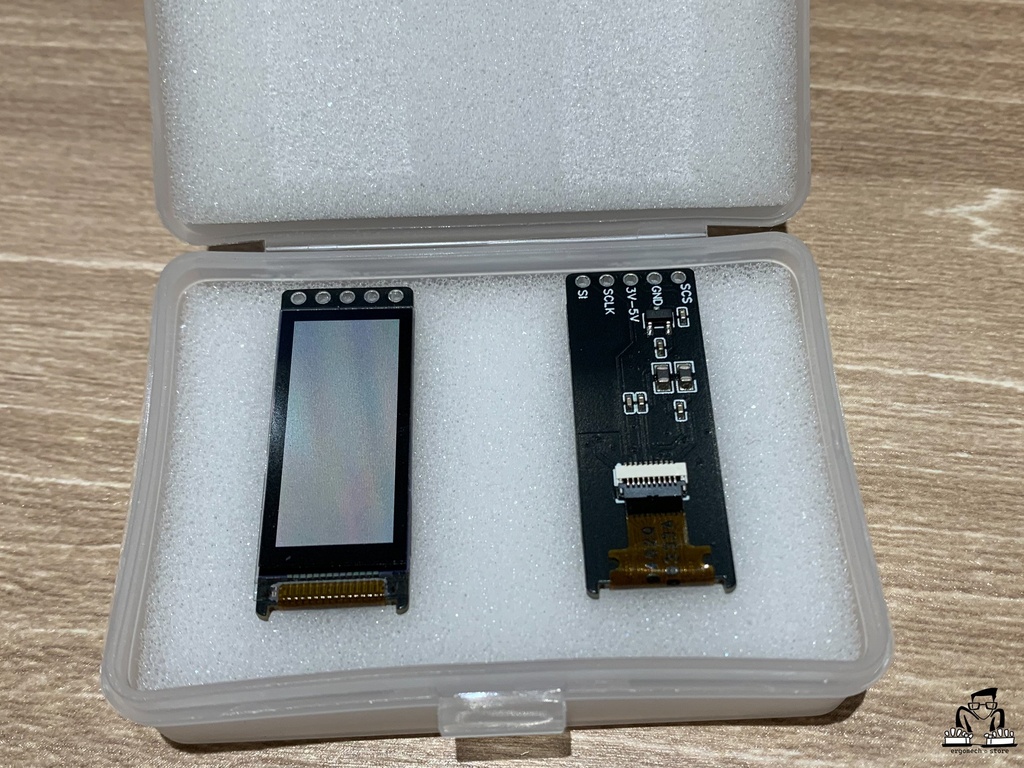

Display Panel: Sharp LS011B7DH03

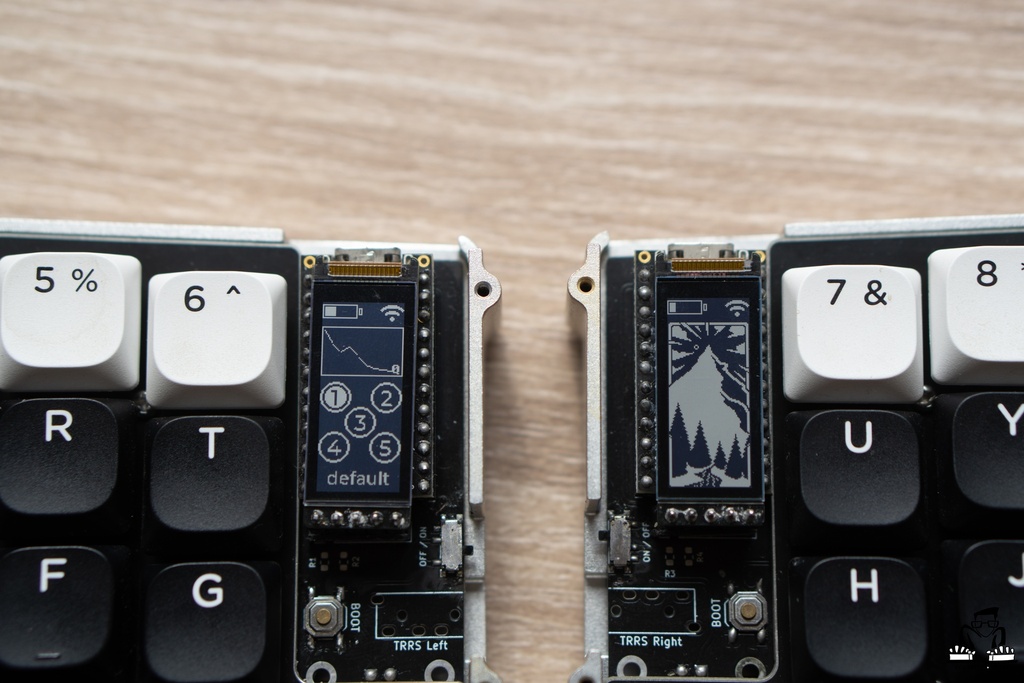

This module use the same panel and pinout as the Nice!View, thus fully compatible with any existing keyboards that's utilizing Nice!View display.
With low power draw, this display will decrease the power consumption of your wireless keyboard significantly.
All of our wireless supports this display by default.
